Raspberry Pi forever - getting the SD card(s) to work along with some numbers and graphs

2012-06-17
7 min read

I have finally got my hands on the awesome Raspberry Pi board with a vicious plan of running a hardened Gentoo on it of course ;] But before that could happen, I had to get a decent SD card for it, which turned out to be not that obvious. There’s a wiki page with a list of SD cards that should and shouldn’t work with your Raspberry. There’s also a discussion thread on the Raspberry Pi forum about performance of various cards, which is vital to the overall performance of the system. I took an SD card from my camera - a 16GB SanDisk Extreme SD card, which is a Class 10 card and should do “up to 45MB/s”. I also decided to buy a 16GB micro SDHC SanDisk Card with adapter. SanDisk claims this card can do “up to 30MB/s” and is marked as ‘200x’ class 6 card. What what I could tell, there were at least some people who were able to get it to work with Pi and got a decent performance out of it.

So I had the following candidates:

  • 16GB SanDisk Extreme SD card, class 10, 45 MB/s
  • 16GB micro SDHC SanDisk Card with adapter, class 6, 30MB/s

For an easy start, I grabbed the debian image of the Raspberry Pi site, put on the cards and booted the Pi. None of the card let me boot the system. Ooops! My hope was that updating the kernel will make a difference…Fortunately, updating kernel image on the Pi is easy, you just need to grab the kernel files from here. All I’ve done was to replace the kernel.img, kernel_emergency.img and start.elf on the first partion of the card, with the files available in the /boot folder from the firmware repository. Next step was to update the /modules folder from the firmware repository, which can be found in /lib/ folder on the second partition on the card. Voila! With the new kernel both cards booted the Debian Pi successfully!

root@raspberrypi:~# uname -a Linux raspberrypi 3.1.9+ #122 PREEMPT Sun Jun 17 00:30:41 BST 2012 armv6l GNU/Linux

Now I was curious how well can each of the card perform. I’ve run the CrystalMark tool on both of them, but the results were fairly inconclusive - both cards scored pretty much the same results, with the random write speeds fluctuating between 1.0 - 1.3 MB/s. Not a bad result anyway! Regardless, I don’t like running Windows…;) and I wanted to run something on the Pi itself, as I think it gives better comparable results between users, because it’s done on the very same hardware - the Pi itself :) So hdparm went first, simply run as

hdparm -t /dev/mmcblk0

…and I got the following results for the Extreme 45 MB/s card:

root@raspberrypi:~# hdparm -t /dev/mmcblk0 /dev/mmcblk0: Timing buffered disk reads: 60 MB in 3.08 seconds = 19.47 MB/sec

the Ultra 30 MB/s card scored:

root@raspberrypi:/home/pi# hdparm -t /dev/mmcblk0 /dev/mmcblk0: Timing buffered disk reads: 60 MB in 3.08 seconds = 19.48 MB/sec

Again, pretty much the same results - a taste of things to come. Let’s see…

I was interested how they would both perform with random reads and writes, to test in the similar manner that the CrystalMark tool does. I found that there’s a great linux tool than can achieve this - fio. Fio is a very versatile tool and provide a lot of testing options. It can also log results to a file, which then can be plotted with gnuplot using a script that is also provided with fio. I created simple three cases:

  • random read
  • random write
  • random read/write

Each one of them was defined as follows (in three separate files, as otherwise fio would run them simultaneusly as a separate threads. Not something I wanted but an interesting feature for creating more complex tests):

[random-read]rw=randreadsize=100mdirectory=/tmp/fio-testing/datawrite_bw_log=bandwidth-readwrite_lat_log=latency-read[random-write]rw=randwritesize=100mdirectory=/tmp/fio-testing/datawrite_bw_log=bandwidth-writewrite_lat_log=latency-write[random-read-write]rw=randrwsize=100mdirectory=/tmp/fio-testing/datawrite_bw_log=bandwidth-read-writewrite_lat_log=latency-read-write

All tests where done over ssh, other than the login shell, the system was idle.

Results below, first, the Extreme card, random read, 2 best and 2 worst results out of approximately 10 runs:

READ: io=102400KB, aggrb=3370KB/s, minb=3451KB/s, maxb=3451KB/s, mint=30377msec, maxt=30377msecREAD: io=102400KB, aggrb=2881KB/s, minb=2951KB/s, maxb=2951KB/s, mint=35531msec, maxt=35531msecREAD: io=102400KB, aggrb=2783KB/s, minb=2850KB/s, maxb=2850KB/s, mint=36789msec, maxt=36789msecREAD: io=102400KB, aggrb=2766KB/s, minb=2832KB/s, maxb=2832KB/s, mint=37018msec, maxt=37018msec

…and the Ultra card:

READ: io=102400KB, aggrb=3355KB/s, minb=3436KB/s, maxb=3436KB/s, mint=30513msec, maxt=30513msecREAD: io=102400KB, aggrb=3337KB/s, minb=3417KB/s, maxb=3417KB/s, mint=30682msec, maxt=30682msecREAD: io=102400KB, aggrb=3218KB/s, minb=3295KB/s, maxb=3295KB/s, mint=31814msec, maxt=31814msecREAD: io=102400KB, aggrb=3210KB/s, minb=3287KB/s, maxb=3287KB/s, mint=31891msec, maxt=31891msec

More or less, same results, the Ultra card seems actually more consistent than the Extreme card…

Now the random write results below, 2 best and 2 worst results out of approximately 10 runs, the Extreme card:

WRITE: io=102400KB, aggrb=1192KB/s, minb=1221KB/s, maxb=1221KB/s, mint=85842msec, maxt=85842msecWRITE: io=102400KB, aggrb=1181KB/s, minb=1209KB/s, maxb=1209KB/s, mint=86696msec, maxt=86696msecWRITE: io=102400KB, aggrb=1111KB/s, minb=1138KB/s, maxb=1138KB/s, mint=92104msec, maxt=92104msecWRITE: io=102400KB, aggrb=956KB/s, minb=979KB/s, maxb=979KB/s, mint=107096msec, maxt=107096msec

…and the Ultra card:

WRITE: io=102400KB, aggrb=1244KB/s, minb=1274KB/s, maxb=1274KB/s, mint=82269msec, maxt=82269msecWRITE: io=102400KB, aggrb=1221KB/s, minb=1250KB/s, maxb=1250KB/s, mint=83851msec, maxt=83851msecWRITE: io=102400KB, aggrb=1027KB/s, minb=1051KB/s, maxb=1051KB/s, mint=99697msec, maxt=99697msecWRITE: io=102400KB, aggrb=645KB/s, minb=660KB/s, maxb=660KB/s, mint=158708msec, maxt=158708msec

Interesting…apart from the one particularily slow run - the Ultra card is as quick as the Extreme card! And the best result for Ultra is better than for Extreme!
And potentially the most interesting one, random read and write results, again 2 best and 2 worst results out of approximately 10 runs:

READ: io=51484KB, aggrb=1059KB/s, minb=1084KB/s, maxb=1084KB/s, mint=48600msec, maxt=48600msecWRITE: io=50916KB, aggrb=1047KB/s, minb=1072KB/s, maxb=1072KB/s, mint=48600msec, maxt=48600msecREAD: io=51660KB, aggrb=812KB/s, minb=831KB/s, maxb=831KB/s, mint=63605msec, maxt=63605msecWRITE: io=50740KB, aggrb=797KB/s, minb=816KB/s, maxb=816KB/s, mint=63605msec, maxt=63605msecREAD: io=50528KB, aggrb=748KB/s, minb=766KB/s, maxb=766KB/s, mint=67502msec, maxt=67502msecWRITE: io=51872KB, aggrb=768KB/s, minb=786KB/s, maxb=786KB/s, mint=67502msec, maxt=67502msecREAD: io=50456KB, aggrb=723KB/s, minb=740KB/s, maxb=740KB/s, mint=69733msec, maxt=69733msecWRITE: io=51944KB, aggrb=744KB/s, minb=762KB/s, maxb=762KB/s, mint=69733msec, maxt=69733msec

…and the Ultra card:

READ: io=51028KB, aggrb=894KB/s, minb=915KB/s, maxb=915KB/s, mint=57071msec, maxt=57071msecWRITE: io=51372KB, aggrb=900KB/s, minb=921KB/s, maxb=921KB/s, mint=57071msec, maxt=57071msecREAD: io=50664KB, aggrb=897KB/s, minb=918KB/s, maxb=918KB/s, mint=56471msec, maxt=56471msecWRITE: io=51736KB, aggrb=916KB/s, minb=938KB/s, maxb=938KB/s, mint=56471msec, maxt=56471msecREAD: io=51112KB, aggrb=777KB/s, minb=795KB/s, maxb=795KB/s, mint=65773msec, maxt=65773msecWRITE: io=51288KB, aggrb=779KB/s, minb=798KB/s, maxb=798KB/s, mint=65773msec, maxt=65773msecREAD: io=51308KB, aggrb=741KB/s, minb=759KB/s, maxb=759KB/s, mint=69182msec, maxt=69182msecWRITE: io=51092KB, aggrb=738KB/s, minb=756KB/s, maxb=756KB/s, mint=69182msec, maxt=69182msec

As I mentioned, fio comes with fio_generate_plots script, that lets you plot collected data. Below are the results for the Extreme card.

Results

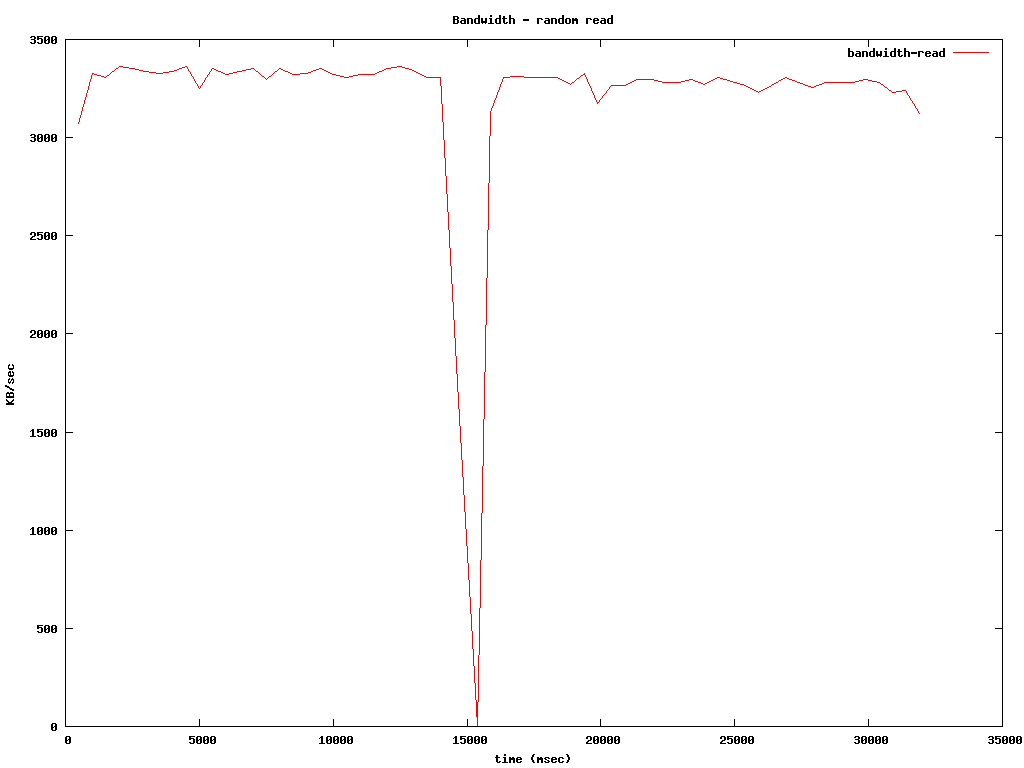

Extreme - Random read bandwidth

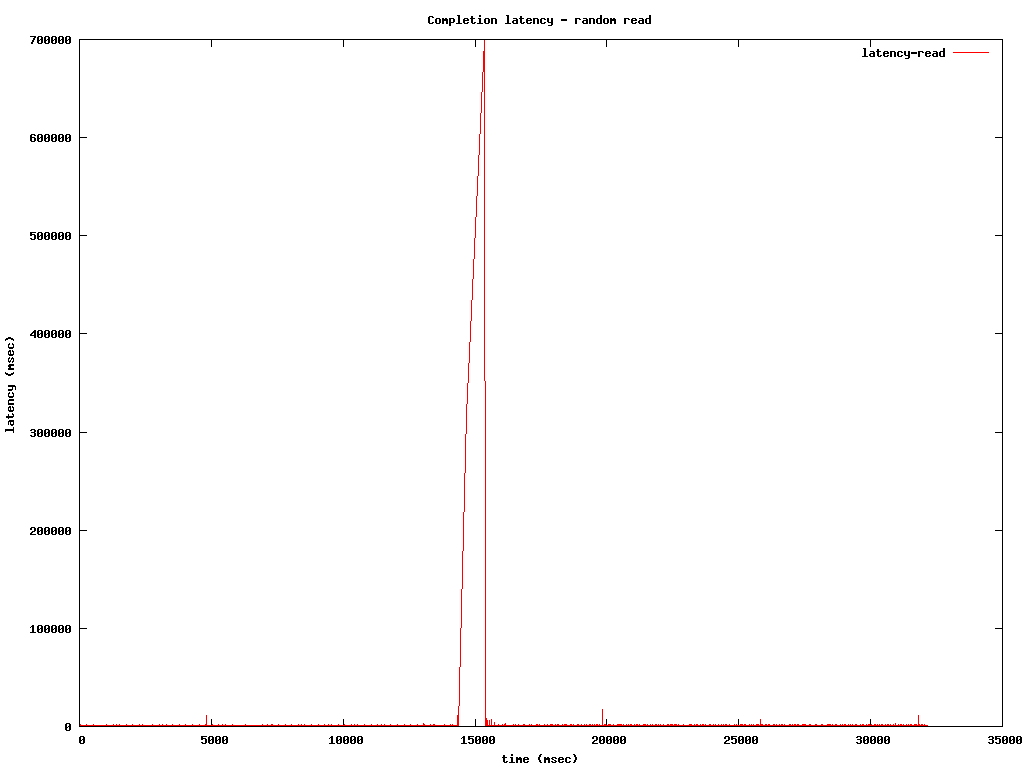

Extreme - Random read latency


That spike in latency and resulting downward spike in bandwidth is interesting…

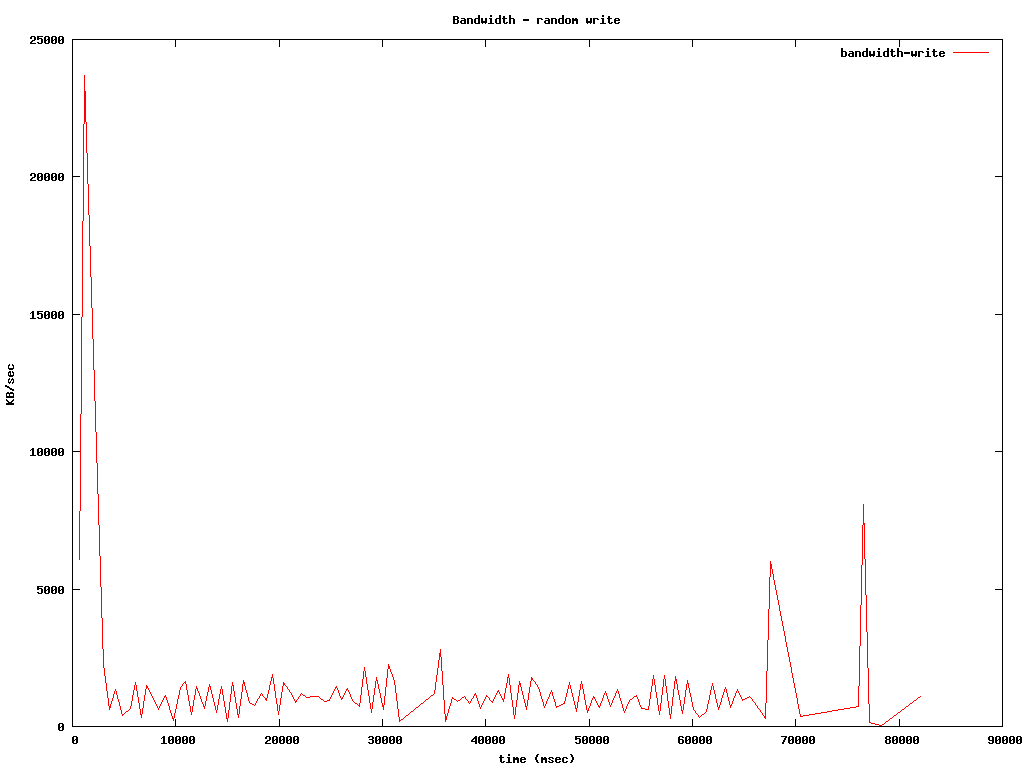

Extreme - Random write bandwidth

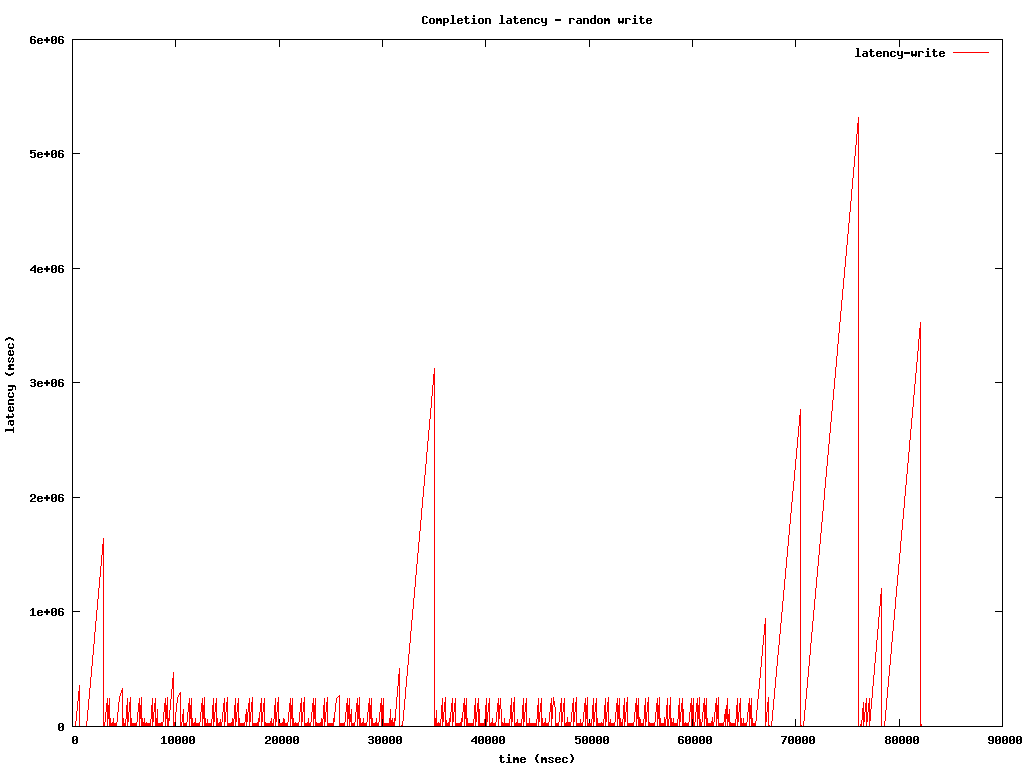

Extreme - Random write latency

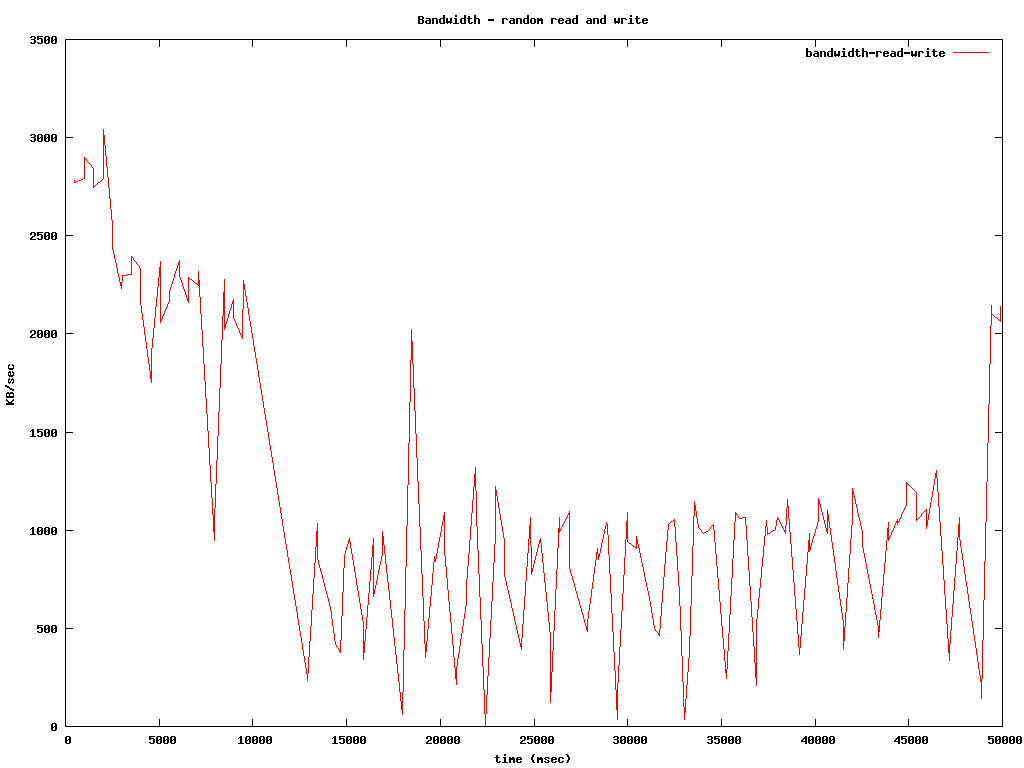

Extreme - Random read/write bandwidth

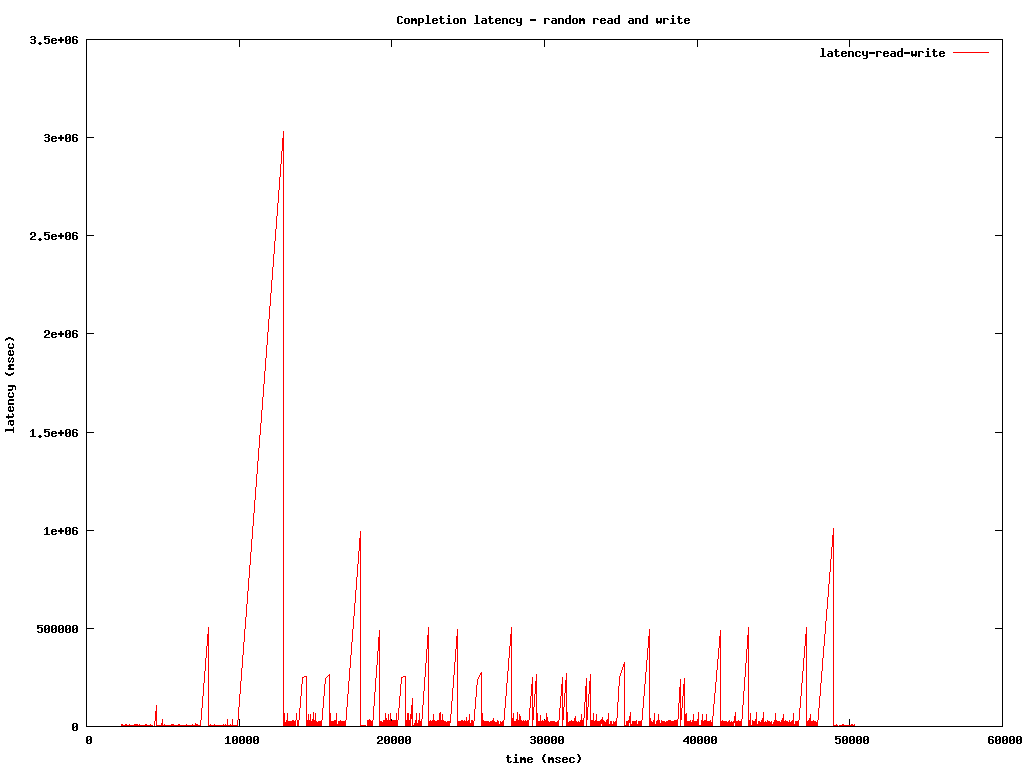

Extreme - Random read/write latency


…and we can also combine them on one graph:

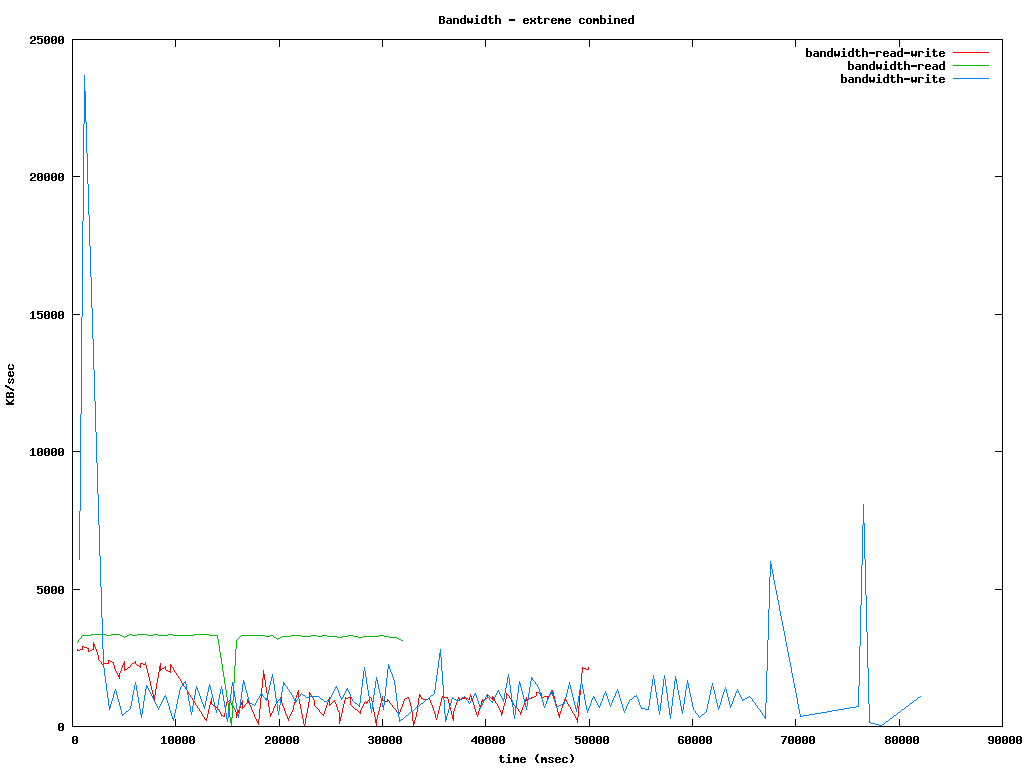

Extreme - bandwidth - combined

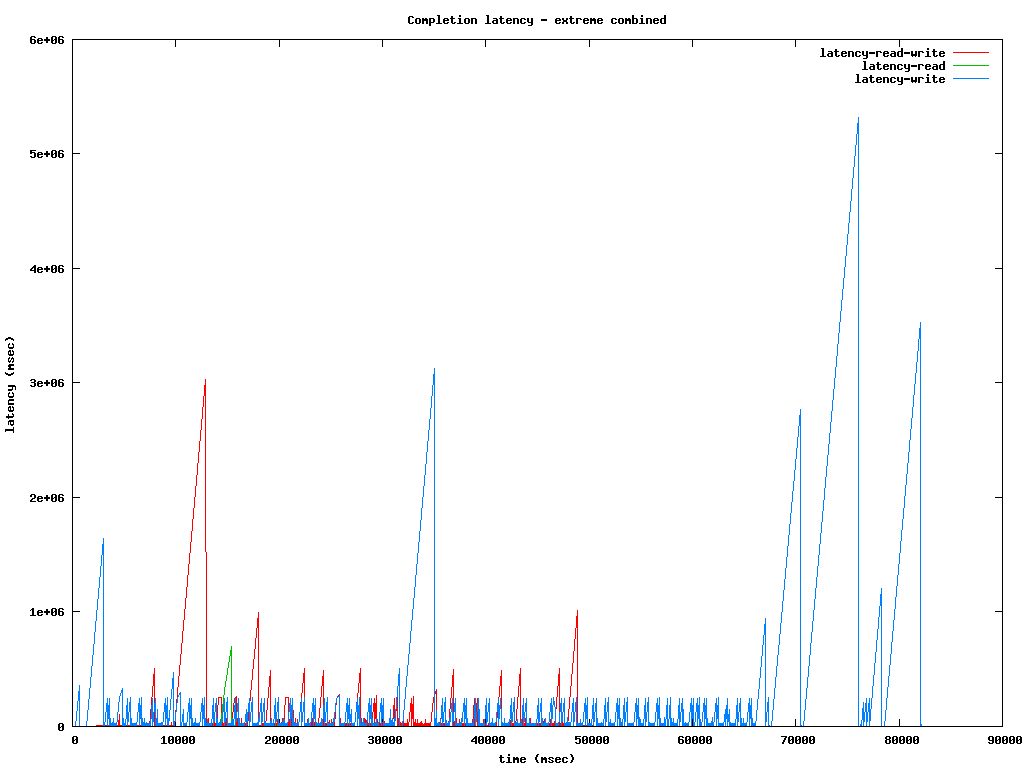

Extreme - latency - combined

And now the graphs for the Ultra card:

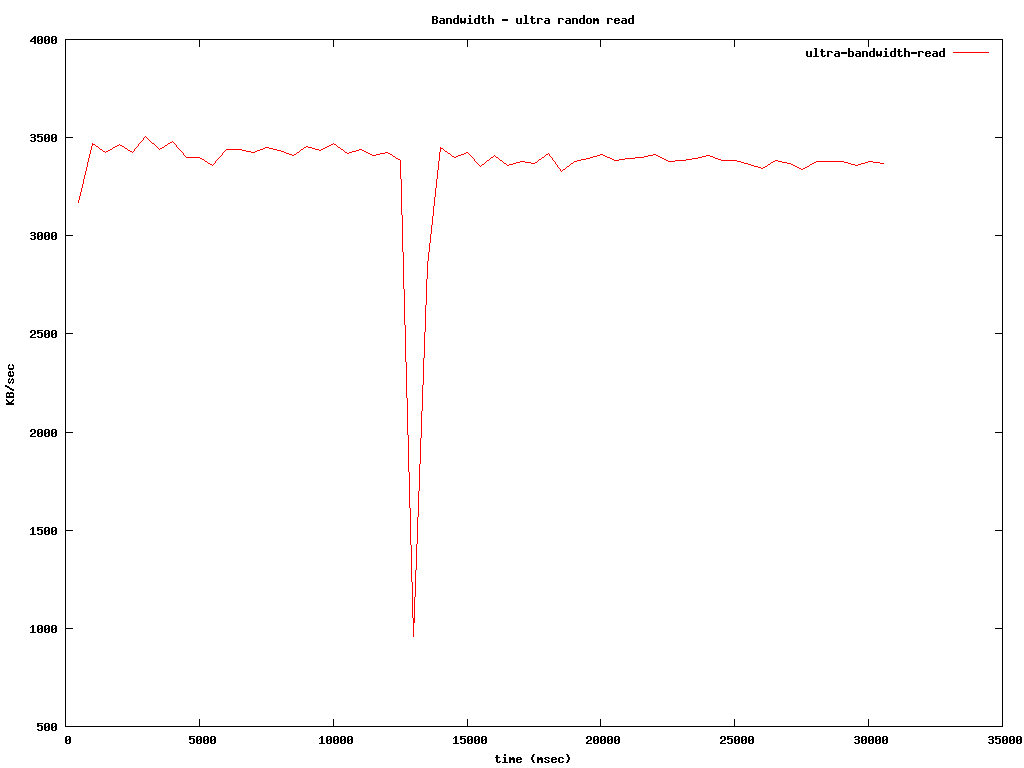

Ultra - Random read bandwidth

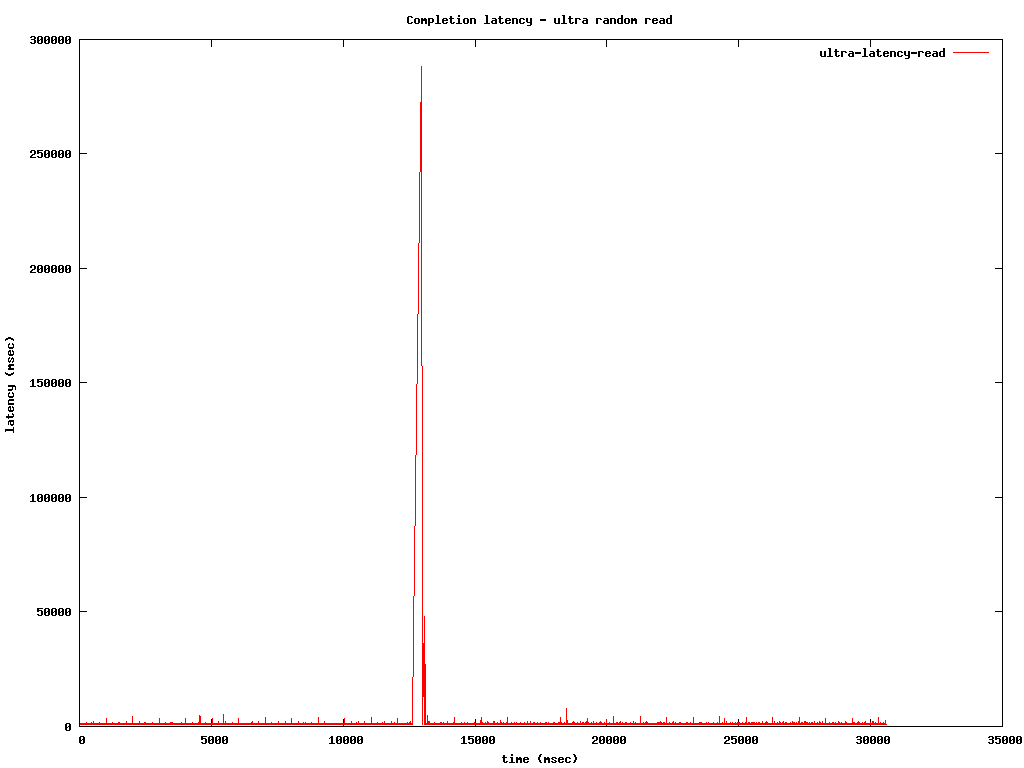

Ultra - Random read latency


Interesting…the very same spike as for the Extreme card!

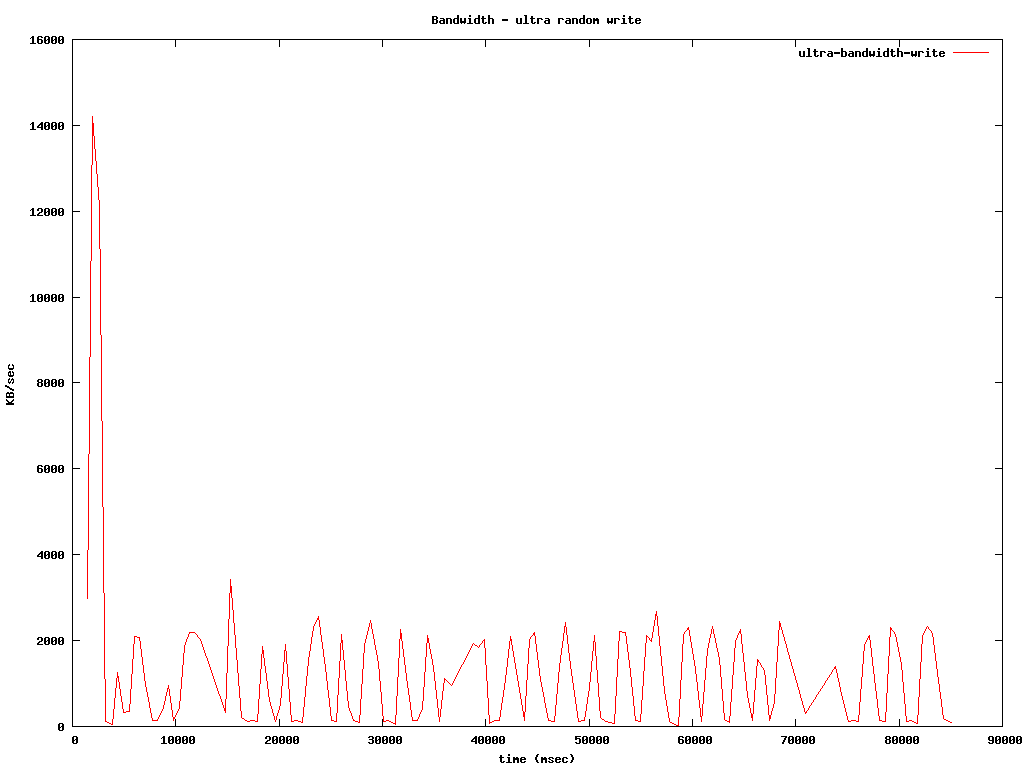

Ultra - Random write bandwidth

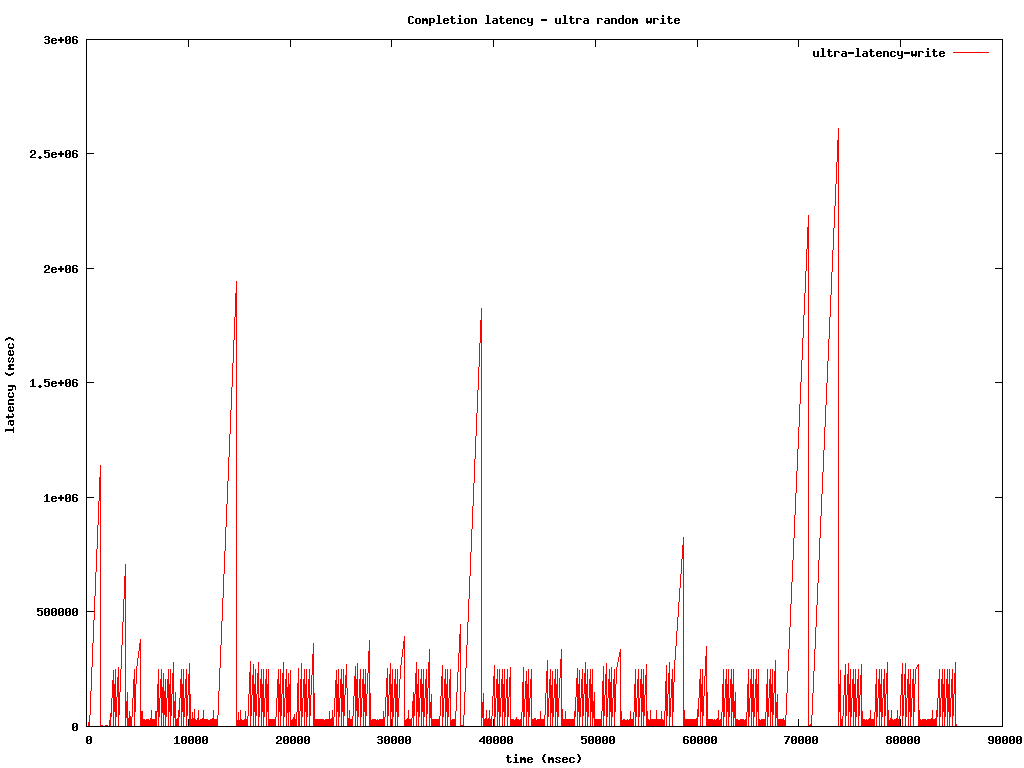

Ultra - Random write latency

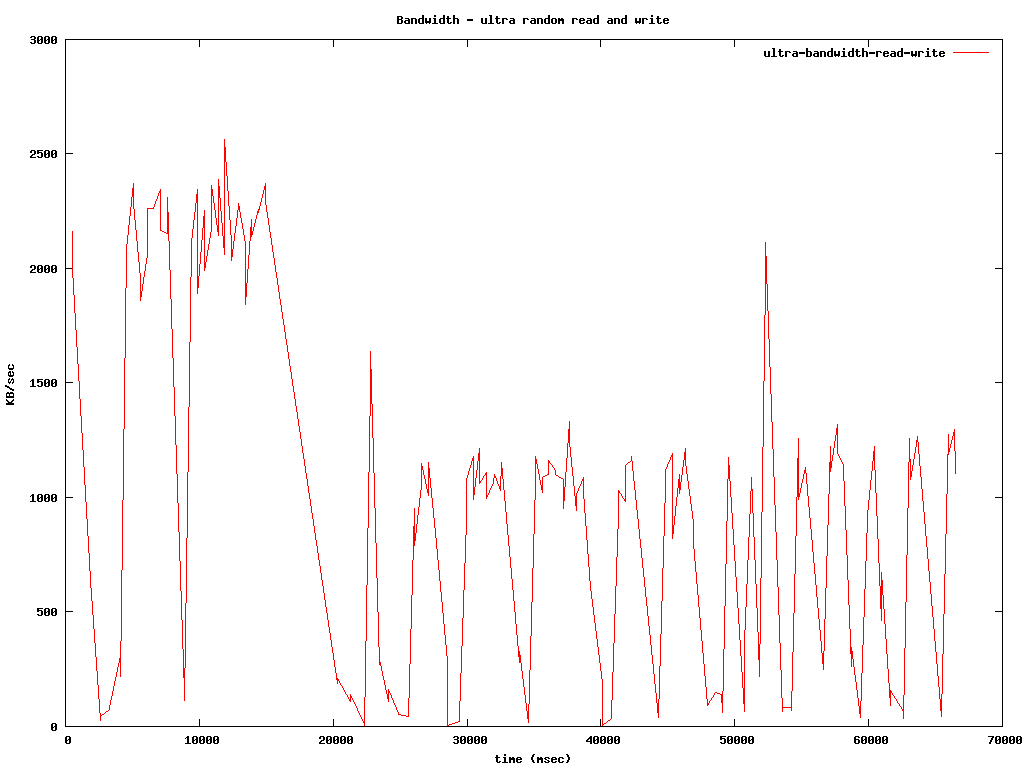

Ultra - Random read/write bandwidth

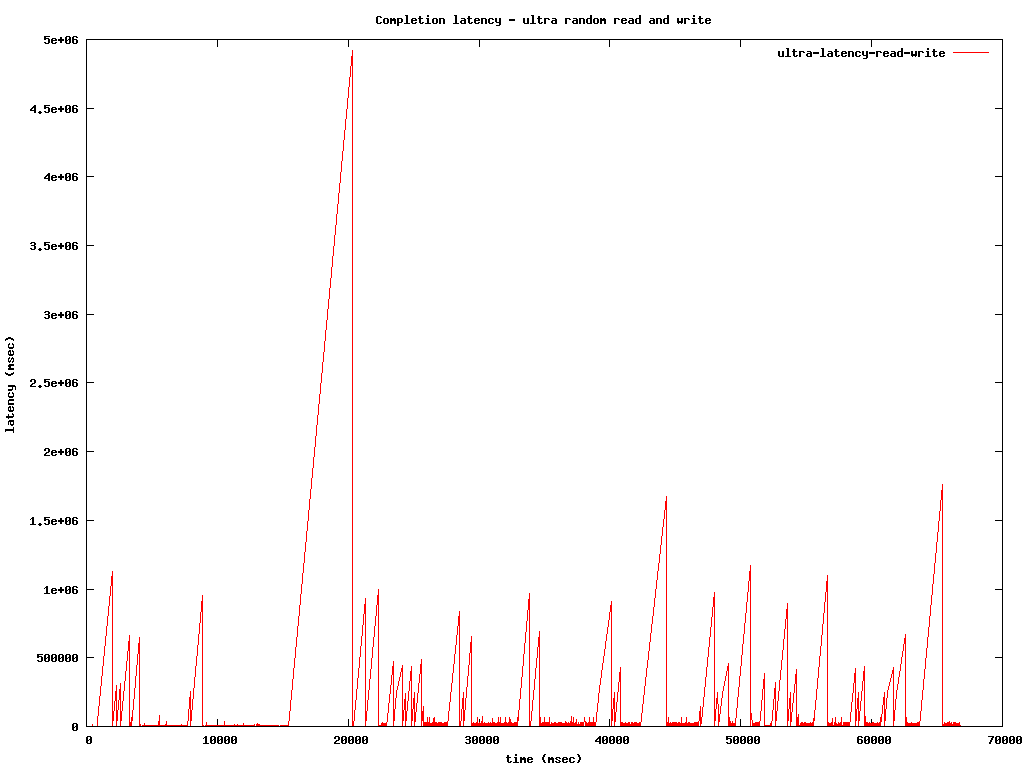

Ultra - Random read/write latency


…and when combined on one graph:

Ultra - bandwidth - combined

Ultra - latency - combined

Now, using the very same script, I have combined the respective graphs for both cards. Please bear in mind, that these graphs do not contain the best results for each card - hence should not be treated as a definitive point of reference. What you can see though, is that the cards share very similar patterns, even if the actual values are slightly different (again, these are from random runs, rather than the best ones)…

Combined results - Random read bandwidth

Combined results - Random read latency

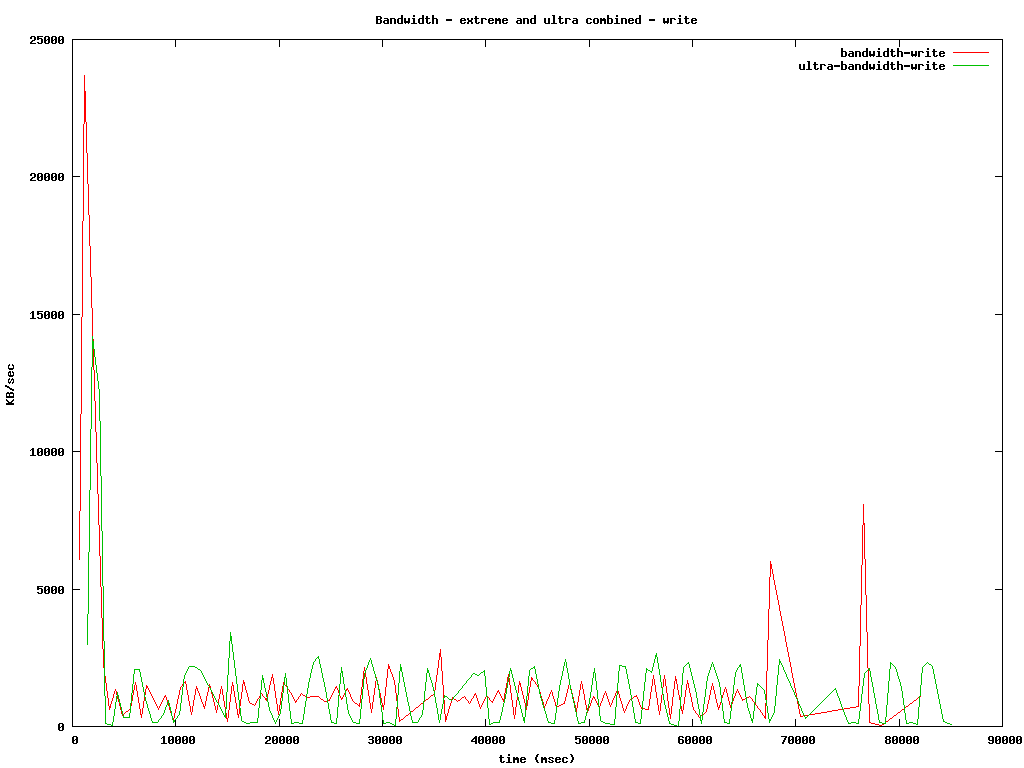

Combined results - Random write bandwidth

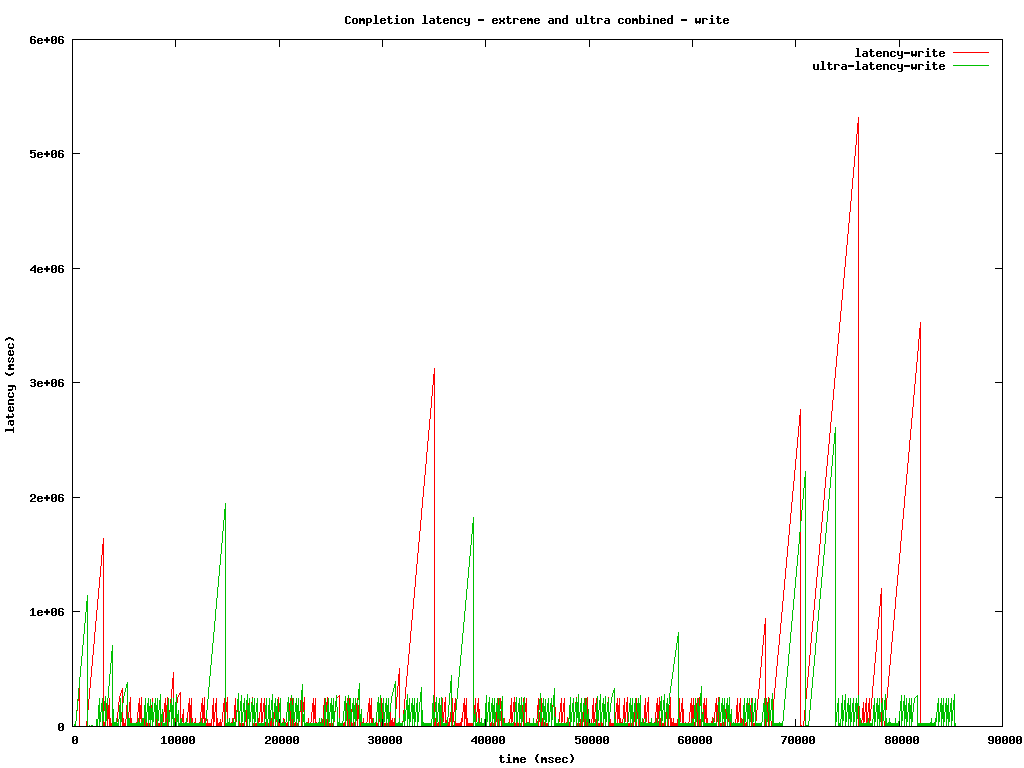

Combined results - Random write latency

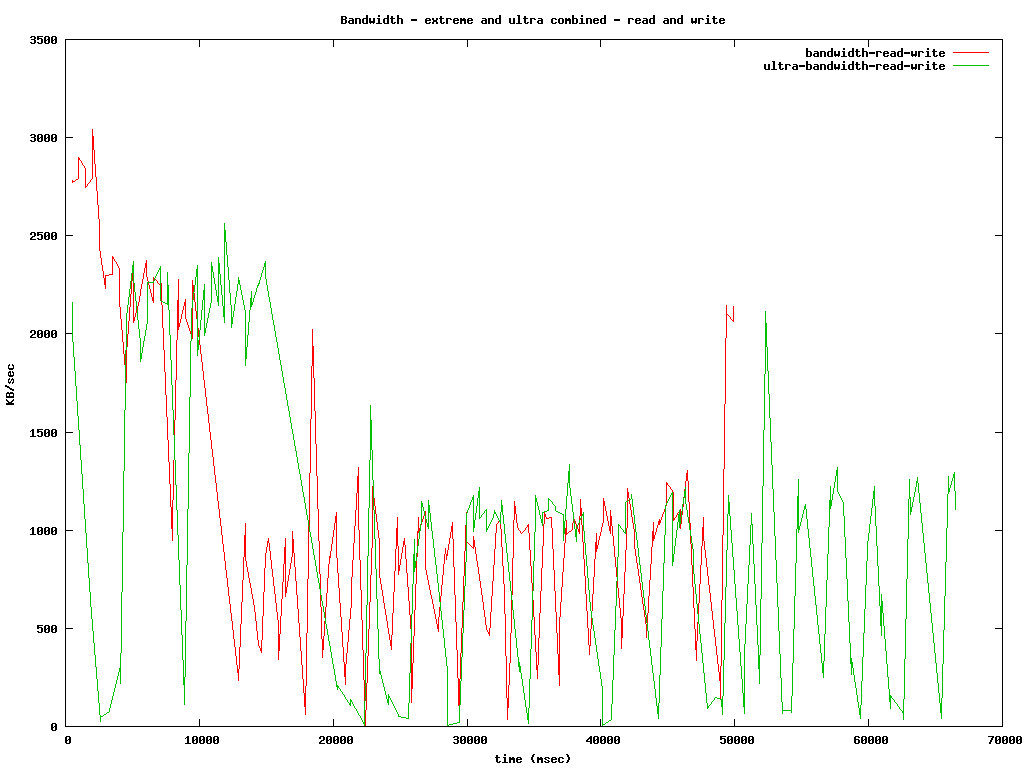

Combined results - Random read and write bandwidth

Combined results - Random read and write latency

Conclusion

Hmm…it seems that the Extreme card does not perform much better, if at all, than the Ultra card. The fastest results for the random read/write test were significantly better than the highest result for the Ultra card; however, on average, they did perform more or less the same…Whether this testing was enough to give any conclusive results is a different matter…;)

The choice is yours…!

Next step - Gentoo on Pi, but for now…Enjoy the Pi! ;]
